Golf Simulator Projector Placement: Throw Ratio, Mount Height, and Killing Shadows
By Divotloft . 9 min read . Updated September 2026
Projector placement decides whether your golf simulator image is bright and full or blotted out by your own shadow on every backswing. Get the throw ratio wrong and the image will not fill the screen from where the projector has to sit. Get the mount height or depth wrong and your body darkens half the picture on every swing. This guide walks through the math and the mount so you can place a BenQ TK710STi Golf Simulator Projector or Optoma GT2400HDR Short Throw Laser Projector correctly the first time, working from each manufacturer's own published spec sheet rather than guesswork.
Quick answer
Mount your projector where throw distance divided by screen width matches its throw ratio: BenQ's spec sheet lists 0.69 to 0.83:1 for the TK710STi, while Optoma's spec sheet lists 0.496:1 for the GT2400HDR and GT2100HDR. Ceiling mount behind and above the golfer's swing arc, at least 9 feet up, to eliminate shadows on the SIG10 or Carl's Place screen.
This guide contains affiliate links. Divotloft may earn a commission at no cost to you.
What throw ratio do you need for your room?
Your required throw ratio is simply throw distance divided by screen width, and BenQ's spec sheet lists the BenQ TK710STi Golf Simulator Projector at 0.69 to 0.83:1, which fills a 10-foot screen from 7 to 8.3 feet of mounting distance. That range covers most two-car garage bays once the projector is ceiling mounted a few feet behind the hitting position.
For rooms with less depth to work with, Optoma's spec sheet lists a 0.496:1 throw ratio for both the Optoma GT2400HDR Short Throw Laser Projector and the Optoma GT2100HDR Short Throw Projector , tight enough to fill a 12-foot screen from under 6 feet of throw distance. If your measured throw distance divided by screen width comes out under 0.6, these two models are effectively the only mainstream options that will fill the screen without spilling image past the edges.
At the top of the range, BenQ's spec sheet puts the BenQ AK700ST Golf Simulator Projector at the same 0.69 to 0.83:1 throw ratio as the TK710STi but adds motorized Auto Screen Fit, which adjusts focus and keystone automatically once the unit is roughly positioned. That is useful insurance if your measured throw distance falls right at the edge of the rated range.
BenQ TK710STi Golf Simulator Projector
A true 4K laser short throw projector with a 0.69 to 0.83 throw ratio, Golf Mode color calibration, and IP5X sealed optics rated for dusty garage environments, priced roughly $700 to $900 below the flagship AK700ST.
Optoma GT2400HDR Short Throw Laser Projector
A new-for-2026 ultra short throw laser projector with a 0.496:1 throw ratio that can fill a 12-foot screen from under 6 feet, 4,200 lumens, and a 30,000-hour laser lifespan, priced at $1,299.
Optoma GT2100HDR Short Throw Projector
A proven ultra short throw 1080p projector with a 0.496:1 throw ratio priced under $1,200, the go-to budget option for tight simulator rooms where the projector must sit close to the screen.
BenQ AK700ST Golf Simulator Projector
BenQ's flagship golf-dedicated projector with motorized Auto Screen Fit, Golf Mode color calibration, 4K laser, and IP5X sealed optics, the most capable purpose-built golf simulator projector available under $3,000.
How high and how far back should the projector mount?
The AllSportSystems SkyRail Sliding Projector Ceiling Mount solves the height and depth question with a 48-inch sliding rail that lets you dial in the fore-and-aft position after the ceiling anchor is already drilled, instead of committing to a fixed point before you have tested for shadows. Set the drop length so the lens clears a full driver backswing by at least 12 to 18 inches.
Room depth behind the hitting position matters just as much as ceiling height. A The Indoor Golf Shop SIG10 Enclosure at 11 feet wide gives most two-car garages enough distance for a standard short throw unit like the TK710STi to sit within its rated 0.69 to 0.83:1 range while still mounting behind the golfer rather than beside the swing path.
If your ceiling has exposed joists, ductwork, or a beam, measure to the actual lowest obstruction rather than the highest point of the room. A rail mount only helps with fore-and-aft position, not vertical clearance, so confirm the drop length clears any obstacle before you drill.
AllSportSystems SkyRail Sliding Projector Ceiling Mount
A sliding ceiling-mounted projector arm with a 48-inch rail that lets you shift the projector fore and aft to dial in screen fill for both 4:3 and 16:9 formats without unscrewing the mount from the ceiling.
The Indoor Golf Shop SIG10 Enclosure
A complete tool-free enclosure kit in a single box with an 11-foot-wide aluminum frame, SIGPRO impact screen, side barrier netting, and weighted anchors, consistently ranked the best all-in-one enclosure for home builds in 2026.
How do you eliminate swing shadows for good?

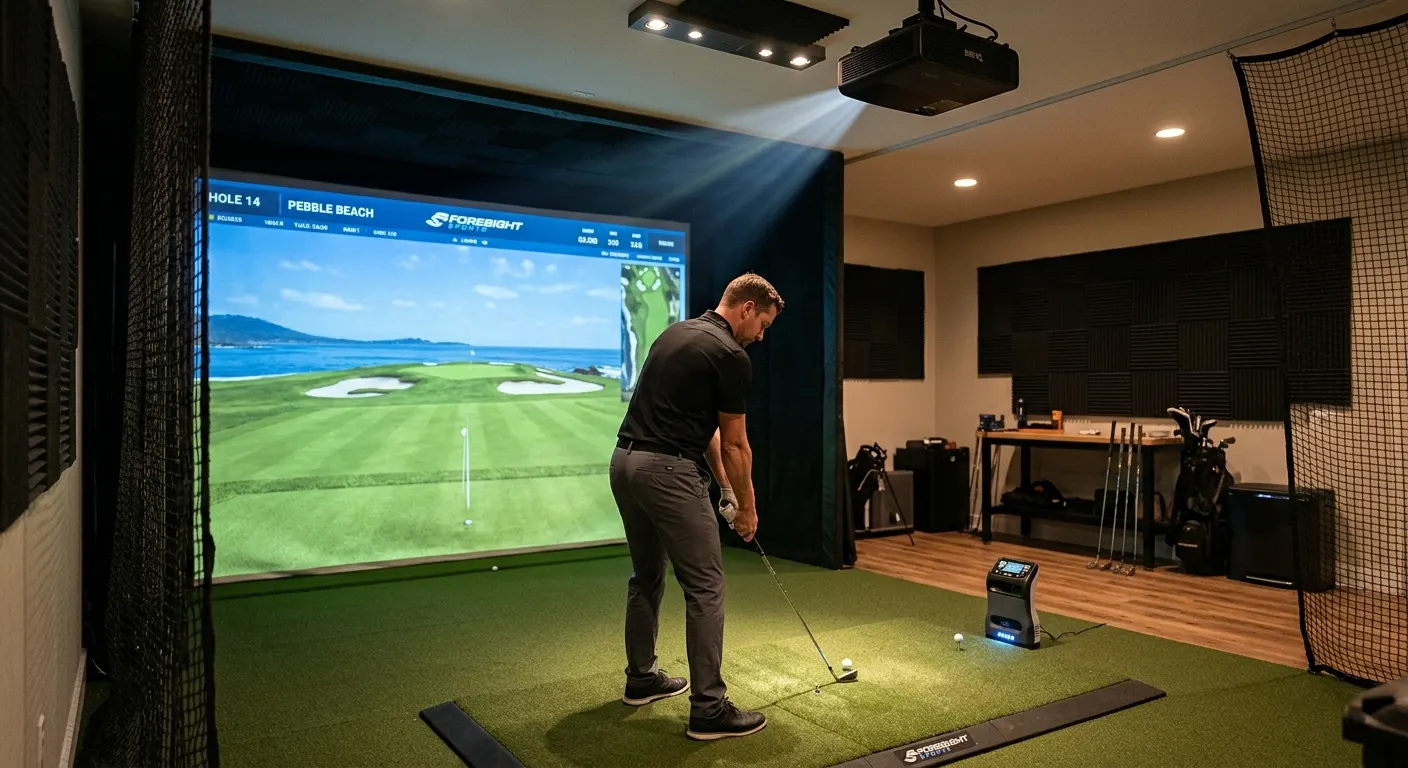

A ceiling-mounted BenQ AK700ST Golf Simulator Projector positioned behind and above the golfer, rather than beside the hitting position, is the single biggest factor in killing swing shadows, because the light path never crosses the space your body and club occupy during the swing. A projector mounted to the side or at hitting-mat height will almost always throw a moving shadow across the screen.
Once the projector is behind and above the swing, the remaining shadow risk comes from mount position rather than projector choice. Use the AllSportSystems SkyRail Sliding Projector Ceiling Mount rail to slide the unit further back if a test swing still shows a shadow crossing the top of the screen, since a lens sitting too close to the hitting position is the most common remaining cause.
Confirm the fix by taking several practice swings, including a full driver swing, with the projector actively displaying an image. A shadow that only appears on the backswing but not the follow-through, or vice versa, usually means the mount needs a small forward or backward adjustment rather than a full re-position.
BenQ AK700ST Golf Simulator Projector
BenQ's flagship golf-dedicated projector with motorized Auto Screen Fit, Golf Mode color calibration, 4K laser, and IP5X sealed optics, the most capable purpose-built golf simulator projector available under $3,000.
AllSportSystems SkyRail Sliding Projector Ceiling Mount
A sliding ceiling-mounted projector arm with a 48-inch rail that lets you shift the projector fore and aft to dial in screen fill for both 4:3 and 16:9 formats without unscrewing the mount from the ceiling.
Which screen should you pair with a ceiling-mounted projector?
The Carl's Place Premium Golf Impact Screen is the right choice when you need a screen sized to an exact inch to match a throw ratio calculation that does not line up with a stock enclosure width, since it ships in custom dimensions rather than fixed sizes. A tight-woven surface also holds a brighter, more even image under a ceiling-mounted short throw unit than a loosely tensioned screen.
For builders who want the screen, frame, and side netting solved in one purchase, the The Indoor Golf Shop SIG10 Enclosure pairs its SIGPRO impact screen with an 11-foot-wide aluminum frame that assembles in one to two hours and already accounts for the throw distance most short throw projectors need. Confirm your calculated throw ratio against the enclosure width before ordering, since a wider screen needs a longer throw distance for the same projector.
Carl's Place Premium Golf Impact Screen
A custom-spec woven polyester impact screen available in sizes down to the inch, designed to hang in an existing frame or custom enclosure build, with a bright projection surface and rated for repeated high-speed ball impacts.
The Indoor Golf Shop SIG10 Enclosure
A complete tool-free enclosure kit in a single box with an 11-foot-wide aluminum frame, SIGPRO impact screen, side barrier netting, and weighted anchors, consistently ranked the best all-in-one enclosure for home builds in 2026.
Featured in this guide
BenQ TK710STi Golf Simulator Projector
A true 4K laser short throw projector with a 0.69 to 0.83 throw ratio, Golf Mode color calibration, and IP5X sealed optics rated for dusty garage environments, priced roughly $700 to $900 below the flagship AK700ST.
Optoma GT2400HDR Short Throw Laser Projector
A new-for-2026 ultra short throw laser projector with a 0.496:1 throw ratio that can fill a 12-foot screen from under 6 feet, 4,200 lumens, and a 30,000-hour laser lifespan, priced at $1,299.
AllSportSystems SkyRail Sliding Projector Ceiling Mount
A sliding ceiling-mounted projector arm with a 48-inch rail that lets you shift the projector fore and aft to dial in screen fill for both 4:3 and 16:9 formats without unscrewing the mount from the ceiling.
The Indoor Golf Shop SIG10 Enclosure
A complete tool-free enclosure kit in a single box with an 11-foot-wide aluminum frame, SIGPRO impact screen, side barrier netting, and weighted anchors, consistently ranked the best all-in-one enclosure for home builds in 2026.
Carl's Place Premium Golf Impact Screen
A custom-spec woven polyester impact screen available in sizes down to the inch, designed to hang in an existing frame or custom enclosure build, with a bright projection surface and rated for repeated high-speed ball impacts.
Keep reading
Related comparisons
Related roundups
FAQ
Frequently asked questions
How do I calculate the throw ratio I need for my golf simulator?+
Measure the distance from where the projector will mount to the screen, then divide that number by your planned screen width. A projector mounting 8 feet from a 10-foot screen needs a throw ratio of 0.8:1 or tighter. Compare that number to the manufacturer spec sheet, not a marketing summary, since throw ratio ranges are published precisely by BenQ and Optoma.
What throw ratio do BenQ and Optoma golf simulator projectors use?+
BenQ's spec sheet lists 0.69 to 0.83:1 for both the TK710STi and the flagship AK700ST. Optoma's spec sheet lists a tighter 0.496:1 ultra short throw ratio for the GT2400HDR and GT2100HDR, which fills a 12-foot screen from under 6 feet of throw distance. Choose the tighter-ratio option whenever your room offers less than 7 feet behind the hitting position.
How high should a golf simulator projector be mounted?+
Mount the lens at least 12 to 18 inches above the highest point of a full driver backswing, measured at the actual hitting position rather than the room average. A ceiling mount with an adjustable drop length, like the AllSportSystems mount, lets you set that clearance precisely and adjust it later if a test swing still shows a shadow.
Why does my golf simulator projector cast a shadow during my swing?+
A shadow almost always means the projector is mounted beside the hitting position rather than behind and above it, so the light path crosses the space your body occupies during the swing. Moving the projector further back along a rail mount, or confirming it sits above the swing plane rather than level with it, resolves most shadow problems.
Do I need to change my screen if I switch to a shorter throw projector?+
Not necessarily, but you should recheck the throw ratio math. A shorter throw projector can sit closer to the screen for the same width, which gives you flexibility in a shallow room, but the screen itself, whether a custom Carl's Place panel or a complete SIG10 kit, does not need to change unless you are also changing screen width.
